HX Series | Trendy Install Speakers

HX118S

Share this:

HEXIUM EXCLUSIVE DESIGN

Real 1500W RMS power capacity
Premium 18" driver with ±12mm linear Xmax
Triple forced cooling system for low power compression
Heavy braced cabinet for vibration free dynamic response
Titanium Finish metal parts
Stunning 10 Layer Piano Lacquer finish

HEXIUM EXCLUSIVE DESIGN

Real 1500W RMS power capacity
Premium 18" driver with ±12mm linear Xmax
Triple forced cooling system for low power compression
Heavy braced cabinet for vibration free dynamic response
Titanium Finish metal parts
Stunning 10 Layer Piano Lacquer finish

Power Handling (AES Standard) 1500W RMS / 6000W Peak
Nominal impedance 8 ohms
Frequency response (-6dB half space, no EQ) 26~110Hz
Average Sensitivity 98dB/W/m
Maximum Calculated SPL @ 1m 130dB continuous / 136dB Peak
Nominal Directivity (-6dB) Omni in useable band
Recommended low cut filter High-pass: 30Hz 24dB/oct, Low-pass: 80~110Hz when used with HX12
Low Frequency driver Custom 18″ CELTO Acoustique, 4” In / Out Split winding Voice coil, dual demodulating rings
Crossover No, active mode only
Flying hardware No
Connectors 2x NEUTRIK Speakon® NL4MP (1+/1- Input & Link, 2+/2- Link)
Pole mount Yes , 20mm thread
Cabinet CNC made with tongue and grove assembly,25mm Finnish WISA birch plywood
Finish 10 Layer Piano Lacquer, Any RAL color available on request
Size (WxHxD) 580x730x700mm
Weight 60kg net, 69kg gross

HX118S subwoofer is suitable for bass reinforcement for main PA systems in a permanent installations for small to large stages, indoor live performances.

Suitable for:

  • FoH
  • Multi-functional room
  • Nightclub
  • Pub
  • Bar

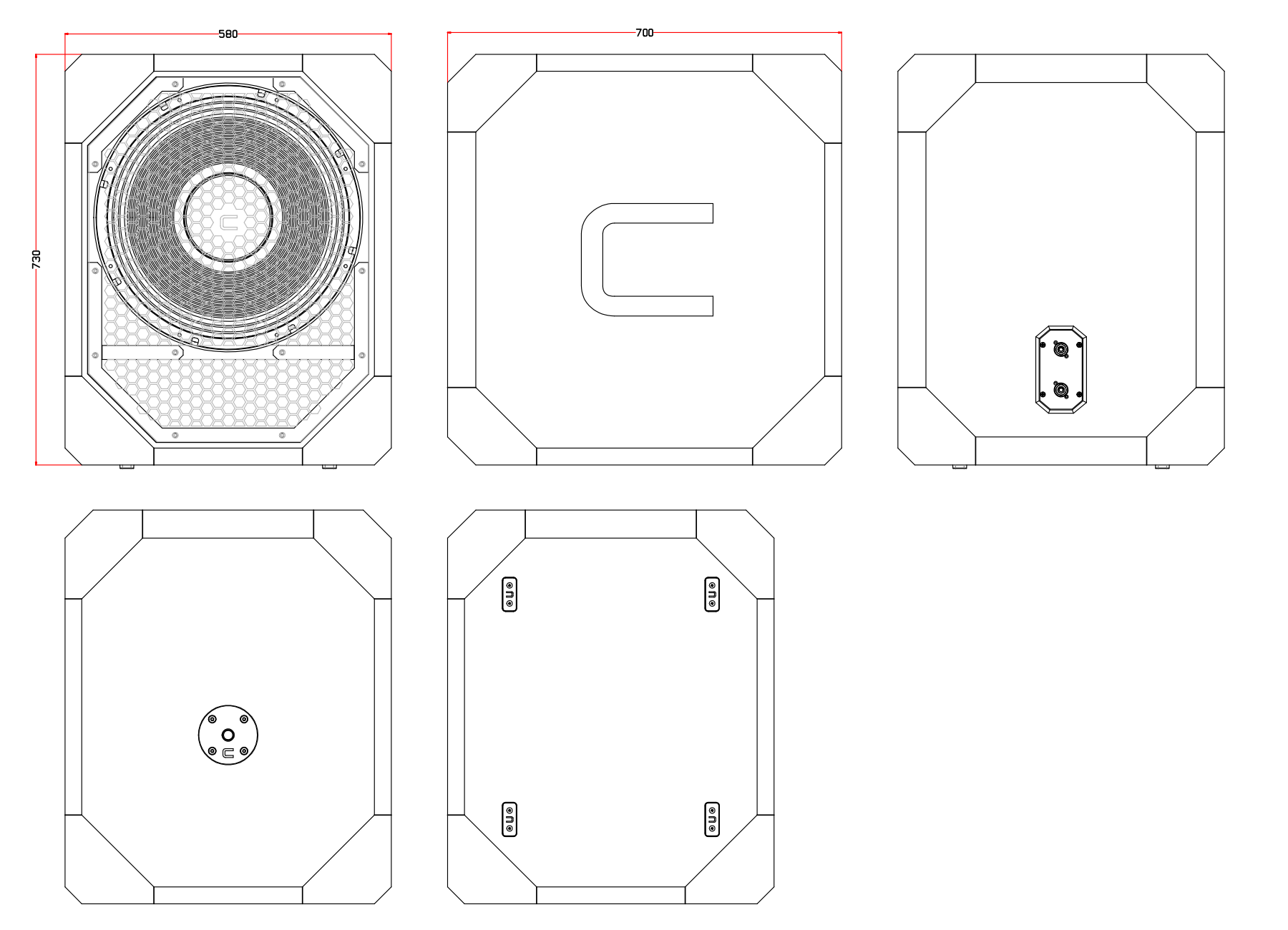

HX118S_A0_CAD_2D_WEB.pdf
HX118S_A0_CAD_2D_WEB.dwg
